JVC's revolutionary 540 TVL CCD, Easy Day/Night Function and leading
    edge DSP combine to meet future market needs.

• 1/3" High Resolution CCD with 380,000 Effective Pixels
• 540 TV Lines of Horizontal Resolution
• Easy Day/Night Function: Chroma ON/OFF
• Super LoLux™ Sensitivity:
  • 0.7 lux F1.2 in Color Mode
  • 0.48 lux F1.2 in B&W Mode
• Signal-to-Noise Ratio: 50dB (AGC OFF)
• Revolutionary Integrated 10 bit Digital Signal Processor (DSP)

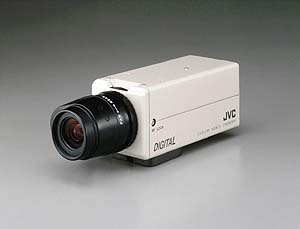

   The TK-C920UA is a fully-featured security camera offering:

• Automatic Electronic Shutter (AES) Mode ON/OFF
• Automatic Gain Control (AGC) ON/OFF
• Automatic Tracking White Balance (ATW) and Manual Modes
• Back-Light Compensation — ON/OFF
• Sync Systems — INT/Line Lock
• Supports Video/DC Iris Lenses
• C/CS Lens Compatible
• Ultra Compact Camera Body
• 24V AC/12V DC Power Supply

o

    A CCTV surveillance camera with almost full night-shooting capability in
    a compact, cost-effective package

• 1/3-inch IT CCD with 250,000 effective pixels
• 0.28 lux SUPER LOLUX
• Auto White Balance Tracking (ATW)
• One-touch Auto White Balance (AWB)
• Auto White Balance adjustment range is from 2,300K to 10,000K
• Automatic Gain Control (Max. 26 dB)
• S/N ratio 50 dB (AGC off)
• Back-light Compensation
• Automatic Electronic Shutter
• DC iris lens connection
• AC 24V power operation

o

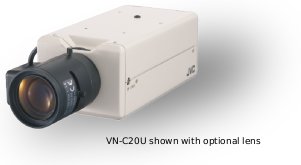

• Full frame rate (up to 30fps) motion-JPEG images at VGA/QVGA resolution (switchable)
• Power over Ethernet (PoE—IEEE802.3af compliant) for easy installation with single LAN cable
• High quality JPEG compression
• Auto-gain control (AGC) and backlight compensation (BLC) on/off
• Automatic tracking white balance (ATW) with manual modes
• Easy Day/Night function
• Motion detection and pre/post alarm buffer
• Multicasting capability
• Full Hybrid with both analog and IP output simultaneously
• Built-in viewer for monitoring and capturing camera images on PC
• Enhanced interface for initial set-up including camera, encoder and alarm settings
• Internet connectivity: built-in web server, FTP client/server.

    Get Powerful Digital Video Security...
    For over 20 years, ADAC has been offering the latest technology in video security.
   As the newest addition to our quality line of products, our DVR speaks for itself:

• Easy picture retrieval
• Compact picture storage
• Event controlled recording
• Picture transmission
• Emergency alarming
• Multi-screen monitoring
• Remote control
• And much more...

    If you would like more information about our products or would like us to help
   you select the right security solution, then contact us at 813-855-2996 to see
   what we can do for you.
